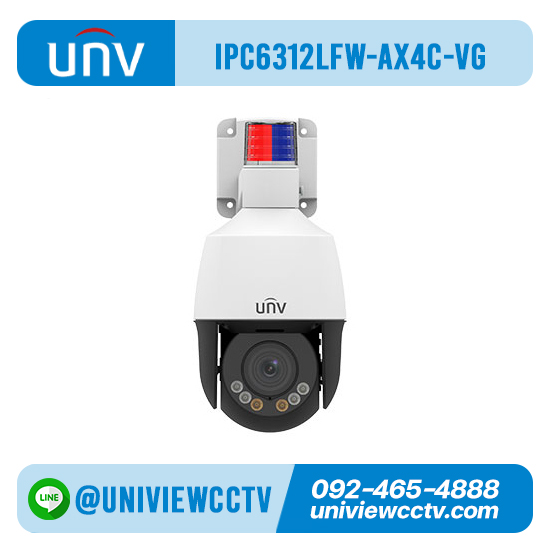

2MP LightHunter Active Deterrence PTZ Camera
- • High quality image with 2MP, 1/2.7"CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in Mic & Speaker
• Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
• Micro SD, up to 256GB
• IP66 protection
• DC12V or PoE (IEEE 802.3af) power supply
| |
IPC6312LFW-AX4C-VG |
| Camera |
| Sensor |
1/2.7" progressive scan, 2.0 megapixel, CMOS |
| Min. Illumination |
Colour: 0.002Lux (F1.6, AGC ON)
0Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| WDR |
120dB |
| S/N |
>52dB |
| Lens |
| Lens type |
2.8~12mm，AF automatic focusing and motorized zoom lens |
| Optical Zoom |
4 |
| Iris |
Fixed; F1.6 |
| Field of View (H) |
105.2° ~ 29.32° |
| Field of View (V) |
52.6° ~ 16.38° |
| Field of View (D) |
108.7° ~ 33.3° |
| DORI |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8mm |
43.4 (142.4ft) |
17.4 (57.1ft) |
8.7 (28.5ft) |
4.3 (14.1ft) |
| 12mm |
186.2 (610.9ft) |
74.5 (244.4ft) |
37.2 (122.1ft) |
18.6 (61.0ft) |
| Illuminator |
| IR Range |
Up to 50m (164ft) |
| Warm Light Range |
Up to 10m (33ft) |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps ~ 16 Mbps |
| ROI |
Support |
| Video Stream |
Triple streams |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC |
Support |
| BLC |
Support |
| Defog |
Digital Defog |
| Intelligent |
| Smart Intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| People Counting |
Support people flow counting and crowd density monitoring |
| Events |
| Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking |
Support |
| General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
G.711U,G.711A |
| Two-way Audio |
Support |
| Suppression |
Support |
| Sampling Rate |
8 kHz |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR,NAS(NFS) |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
| Client |
EZStation
EZLive
EZView |
| Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range |
0° ~ 345° |
| Pan Speed |
0.1°/s ~ 50°/s |
| Preset speed: 50°/s |
| Tilt Range |
-10° ~ 110° |
| Tilt Speed |
0.1°/s ~ 40°/s |
| Preset speed: 40°/s |
| Number of Presets |
256 |
| Preset Patrol |
16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time |
120s~1800s |
| Home Position |
Support |
| Interface |
| Built-in Mic |
Support |
| Built-in Speaker |
Support |
| Network |
1 * RJ45 10M/100M Base-TX Ethernet |
| Alarm Light |
Support |
| Certification |
| EMC |
CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety |
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment |
CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power |
DC12V(±25%), PoE (IEEE 802.3af) |
| Power consumption: MAX 15W |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
Φ133mm*269mm (Φ5.2”x 10.6”) |
| Weight |
0.87 kg (1.92lb) |
| Working Environment |
-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) |
| Storage Environment |
-40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection |
2KV |
| Reset Button |
Support |
|
